All-in-one energy storage system

OmniCube – the next generation of energy storage

The OmniCube energy storage systems (ESS) are designed specifically for the demanding requirements of commercial and industrial applications. Thanks to the fully pre-integrated all-in-one design, installation time and costs are drastically reduced. An efficient air-cooling system and extremely high energy density make the OmniCube A215 the ideal solution for peak shaving, backup power and optimising self-consumption from PV systems.

Click the video to enable sound

Strengths at a glance

What sets the OmniCube apart

Efficient thermal managementThe intelligent air-cooling system with separate chambers and dual air ducts ensures precise temperature control. This maximises system efficiency (≥ 89 %), protects the battery cells and considerably extends their service life.

Intelligent and predictive maintenanceThe patented iCCS technology enables fault prediction and self-balancing of the battery cells. Potential problems are detected months in advance, maximising operational safety and minimising downtime.

Uncompromising safetyA multi-dimensional safety system with a 2-hour fireproof housing, separate battery and electrical compartments and an independent fire-suppression system (CE-certified) provides maximum protection for people and investment.

Fast and easy installationThe all-in-one design means all components are factory-integrated. That considerably reduces on-site complexity and enables faster, cheaper commissioning.

The next level of energy self-sufficiency

The OmniCube by PotisEdge

Exclusively at C&F Flöckner: we bring the all-in-one energy storage solution for commerce, industry and agriculture to Austria. Cut your electricity costs, protect your business against outages and maximise the value of your PV system. The OmniCube is the intelligent answer to volatile energy prices.

Application scenarios

Flexible for every scenario

As the diagram shows, the OmniCube systems offer outstanding flexibility and integrate seamlessly into existing and new infrastructure. They are designed for a wide range of use cases:

Flexible integration and supply: connect the system AC- or DC-side to your PV system and the public grid. Reliably supply AC consumers and at the same time a wide variety of DC loads such as high-voltage (750 V), medium-voltage (350 V) and low-voltage applications (48 V).
Peak shaving and valley filling: reduce expensive load peaks and optimise your energy costs through intelligent load management.
Backup power (EPS): reliably protect critical operational processes during grid outages.
Self-consumption optimisation: maximise the use of your self-generated PV energy and increase your independence.
Scalability: expand your system into the MWh range by connecting up to 10 units in parallel.

Key specifications

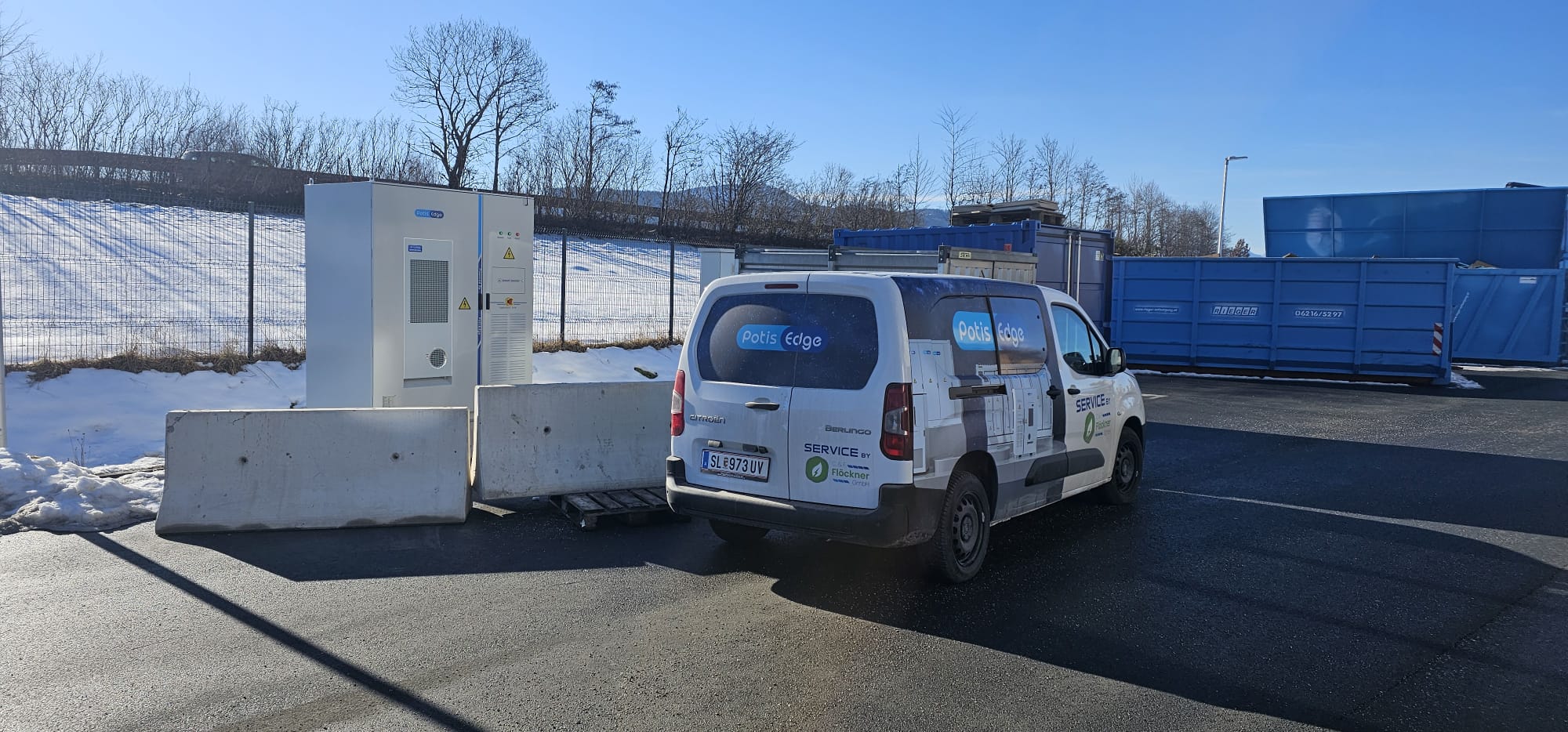

OmniCube battery storage installed outdoors in winter

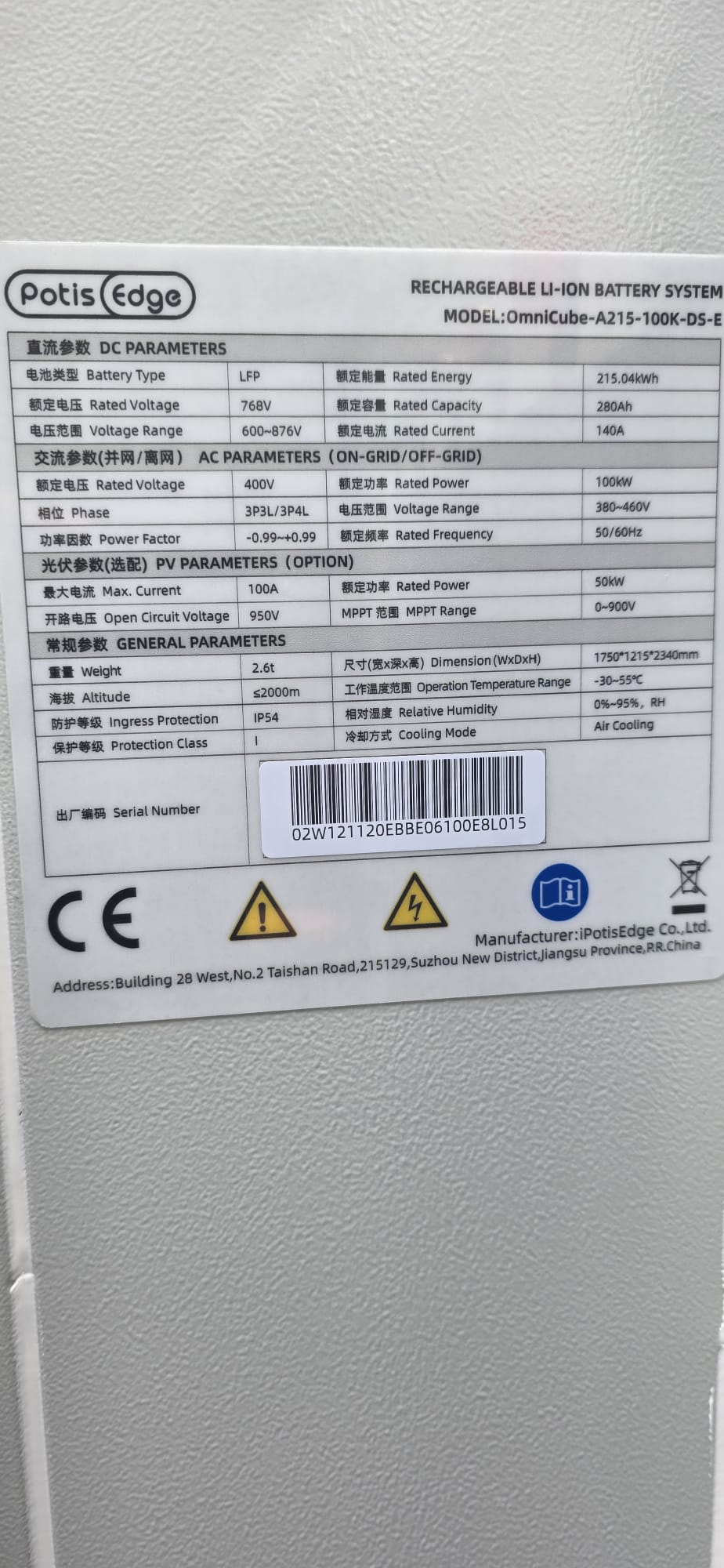

Nameplate detail of an OmniCube storage system

Our OmniCube models at a glance

OmniCube-A215-100K

Specification	Value
Nominal energy	215 kWh
Nominal output power	105 kW (per the manufacturer’s comparison document)
Cell type	LFP (EVE 280 Ah)
Cycle life	> 6,000 cycles @ 80 % EOL
Cell charge/discharge efficiency	≥ 94 %
System efficiency	≥ 89 %
PV input	50 / 100 kW (optional)
Parallel connection	up to 10 units
Cooling	air cooling
Fire protection	2-hour fire-resistant casing, independent fire-suppression system per compartment
Dimensions (W × D × H)	1750 × 1215 × 2340 mm
Weight	2.6 t
Standards	IEC/EN 62619, IEC/UL 60730, IEC/EN 62477, IEC/EN 61000, GB 36276, GB/T 34131, UN 38.3, UN 3480

Quick installation manual (PDF)

Product comparison (PDF)

OmniCube-L233-125K-J

Specification	Value
Product variant	OmniCube-L233-125K-J-EU
Nominal energy	232.96 kWh
Nominal output power	125 kW
Cell type	LFP (lithium iron phosphate)
Battery rated voltage	832 V
Battery voltage range	650–949 V
Charge/discharge current (standard / max.)	140 A (0.5C) / 160 A (0.5C)
Grid connection	400 V, 3P3W/3P4W, 50/60 Hz
Cooling	highly efficient liquid cooling
Protection rating	IP55
Fire protection	aerosol suppression system
Operating temperature	−30 to +55 °C
Max. operating altitude	≤ 2,000 m
Communication	Ethernet; IEC 61850, Modbus
Dimensions (W × D × H)	1000 × 1350 × 2350 mm
Weight	2.4 t
Standards	IEC/EN 62619, IEC/UL 60730, IEC/EN 62477, IEC/EN 61000, IEC/EN 300328, UN 38.3, UN 3480

Datasheet (PDF)

How the OmniCube pays for itself

The saving on your electricity bill results from two effects:

Peak shaving: reducing expensive load peaks (demand charge).
Self-consumption: using your cheap stored solar power instead of expensive grid power (energy charge).

We are happy to prepare an individual payback calculation for your business — simply contact us via the form below.
